Your benefits at a glance

The construction is very durable and simple. In addition the elevators are equipped with electric protection against overload, so that the bed will stop automatically if it is overloaded.

The bed can be extended up to 15 cm. To maintain comfort for all patients, the standard width of the mattress platform is 90 cm.

The 5th castor makes transporting the bed through long corridors easier, maintaining a straight line. In addition it creates a turning point in the middle of the bed.

For a higher level of patient protection, the nurse can equip the bed with an independant protector and extension. The protector will lock the side rail in the 'up' position automatically.

The position can be adjusted with a single push of a button.

The bed can be equipped with soft drop function of split plastic siderails. The safety of the split plastic siderails is guaranteed by a system of two independent unlocking movements. Siderails are lowered using the soft drop function which applies a gas spring to soften the effect of the siderails movement.

Technical features

Outer dimensions (siderails up) 218 cm x 99.5 cm
Mattress platform extension 15 cm
Recommended mattress size 200 cm x 90 cm x 16 cm
Max. mattress height 16 cm
Bed height 37 cm – 73.5 cm (39.5 – 76 cm with ⌀150 mm castors)
Maximum backrest angle 70°
Maximum thigh rest angle 35°
Trendelenburg/Reverse Trendelenburg position 15°/15°
Ergoframe 10 cm / 6 cm
Height of plastic split siderails 38 cm
Height of single collapsible siderails 38 cm
Weight (basic equipment) 135 kg
Safe working load 185-250 kg
Lifting pole bearing capacity 75 kg
Max. patient weight 185 kg
Height adjustment motors
TR/ATR tilt adjustment motors
Backrest adjustment motor
Thigh rest adjustment motor
Calf rest mechanical ratchet
Bed extension mechanical

  • Patient controls in the side rails
  • Handset
  • Plug and play hand set
  • Central control panel (mini ACP)
  • Supervisor panel
  • Foot controls
  • Satellite control panel

  • Plastic split side rails with integrated controls
  • Plastic split side rails
  • Ergonomic single collapsible side rails
  • Protector  (O)
  • Safe gap concept (entrapment prevention)
  • 4-section mattress platform
  • Ergoframe 10 + 6 cm
  • Removable plastic covers formed from 8 removable blow moulded lamella

Scissor construction

Mobi-Stick handles (O)

  • 4 castors ⌀125 mm Tente Motion
  • 4 castors ⌀150 mm Tente Integral (O)
  • 4 castors ⌀150 mm Tente Integral with plastic covers (O)
  • 4 double castors ⌀150mm Tente Integral (O)
  • Centrally operated castors from 2 points
  • Centrally operated castors from 4 points (O)
  • 5th castor (O)

  • Brake alarm
  • Night light
  • Motor protection (independent current protection for each motor preventing damage to the motor if overloaded)
  • Removable plastic bed ends E1 design
  • Removable plastic bed ends E3 design

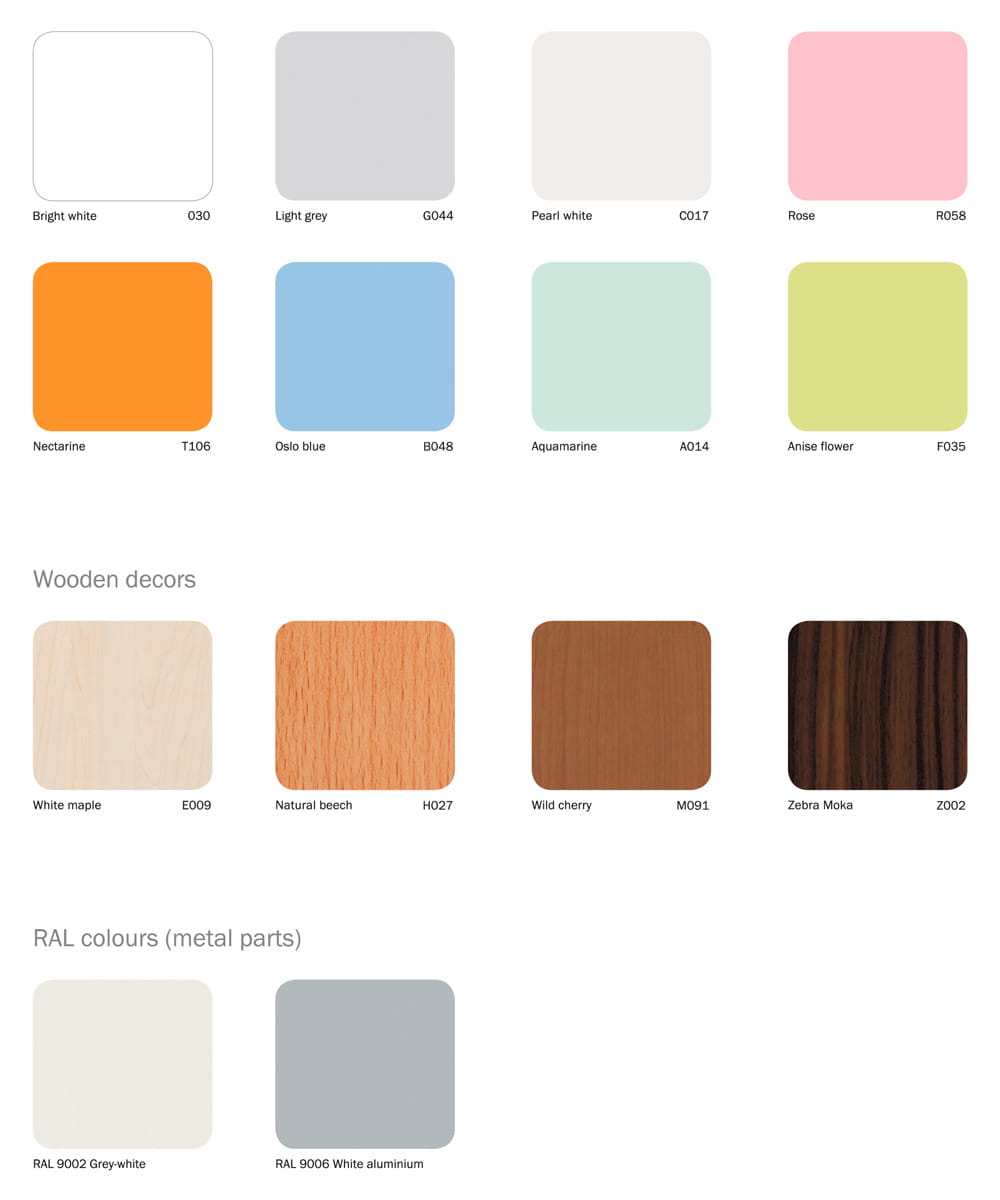

  • Powder coated bed ends with colour HPL panel
  • Head and foot end with safety locks
